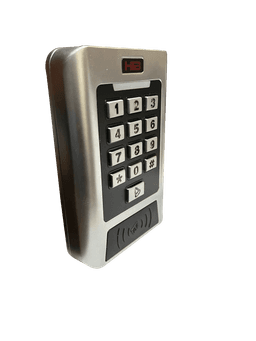

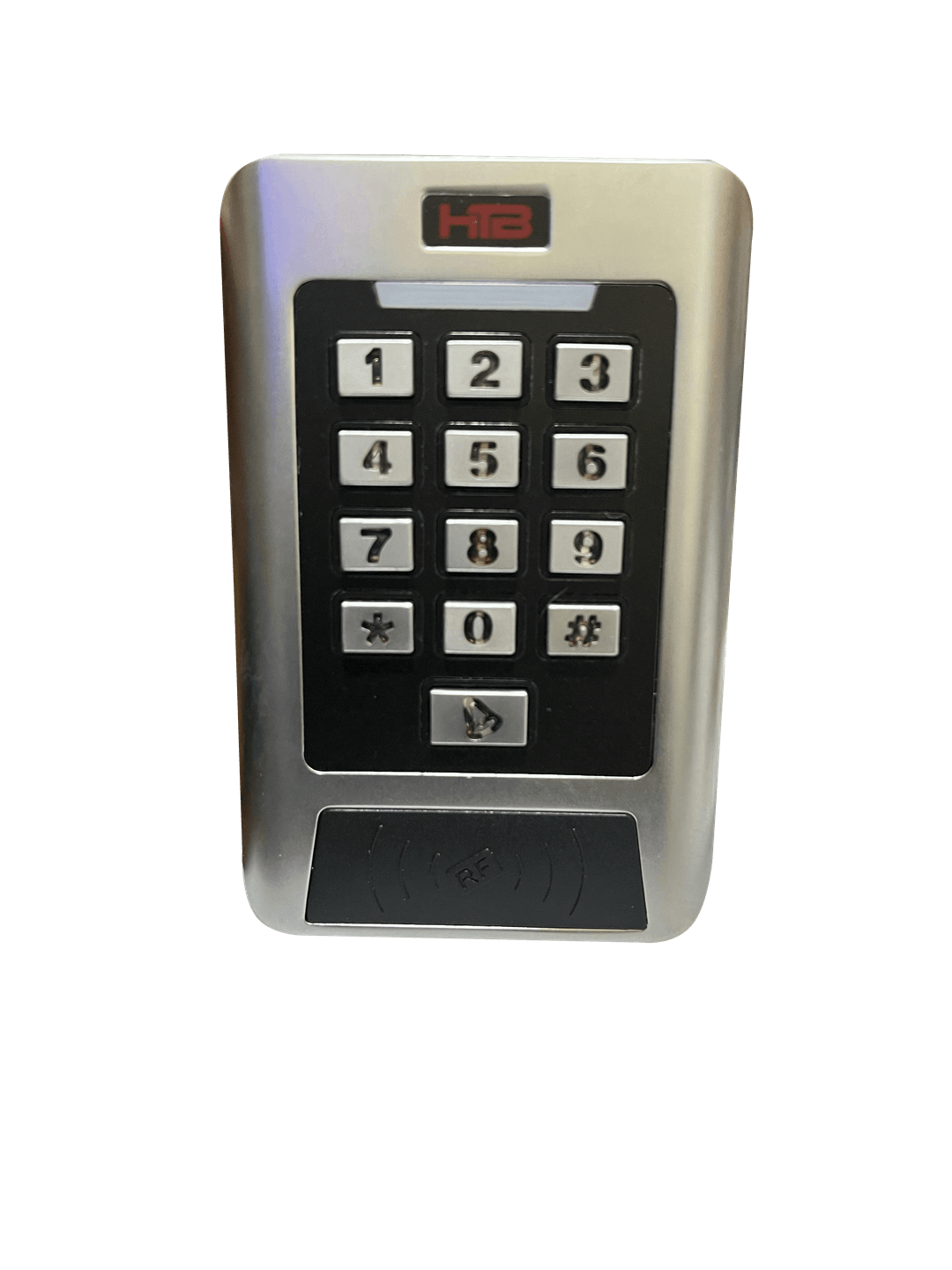

STANDALONE ACCESS CONTROL WITH TWO RELAYS HTB CC2EH

The HTB CC2EH is an advanced standalone access control system designed to manage up to two doors with high security and reliability. It supports multiple access methods including card, PIN, or card + PIN combinations, making it suitable for various applications such as residential buildings, offices, warehouses, and commercial facilities.

Equipped with two relays, the device can directly control locks, alarms, and ring bells, along with support for exit buttons and door contacts.

Key Features:

✅ Pure Zinc Alloy Casing – Durable and waterproof with IP68 protection

✅ Dual Frequency Card Reader – Supports 125KHz EM & HID cards and 13.56MHz Mifare cards

✅ Multi-Mode Access Control – Card, PIN, Card + PIN

✅ Two Relays for Controlling Two Doors

✅ Anti-Tamper, Door Contact, and Anti-Duress Alarm Functions

✅ Backlit Keypad – Configurable to always ON, always OFF, or Human-Approach ON

✅ Quick User Registration & Deletion – Using manager cards or keypad

✅ Wiegand 26-37bit Input & Output – Supports external readers

✅ Anti-Passback Mode – For enhanced security

Working Modes:

Wiegand Reader Mode

Standalone for Single Door

Standalone for Two Doors

Two Doors with External Reader

Two Units Interlocked for Two Doors

Anti-Passback for Single Door

Anti-Passback for Two Doors

Ideal Applications:

🏠 Residential Buildings

🏢 Offices

🏗️ Warehouses

🔐 High-Security Facilities

🛑 Industrial Sites

✅ The HTB CC2EH is the perfect solution for environments requiring reliable, secure, and multi-functional access control.
