Camera Parameters

Sensor: 1/3" Progressive Scan CMOS

Lens 2.0 mm @ F1.6, visual angle (diagonal):146°

Max. Resolution: 1080p / 2MP

Video Frame Rate: 15fps

Interface

Buttons: 1. Screen Wake-up Button （Reset button） 2. On/off Button

Network

Protocol: EZVIZ Cloud Proprietary Protocol

Video Viewing Local and remote video Viewing

General Function: Cloud video encryption and image encryption

Wireless

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports 20 MHz

Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transmission Rate: 11b: 11Mbps, 11g :54Mbps, 11n :150Mbps

General

Screen: 4.3-inch color screen

Color: Silver/Golden

Operating Conditions -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)

Power Supply: DC 5V (±10%)

Power Consumption: Max. 2W

Dimension: Screen: 113*75*20 mm (4.45*2.95*0.97 inch)

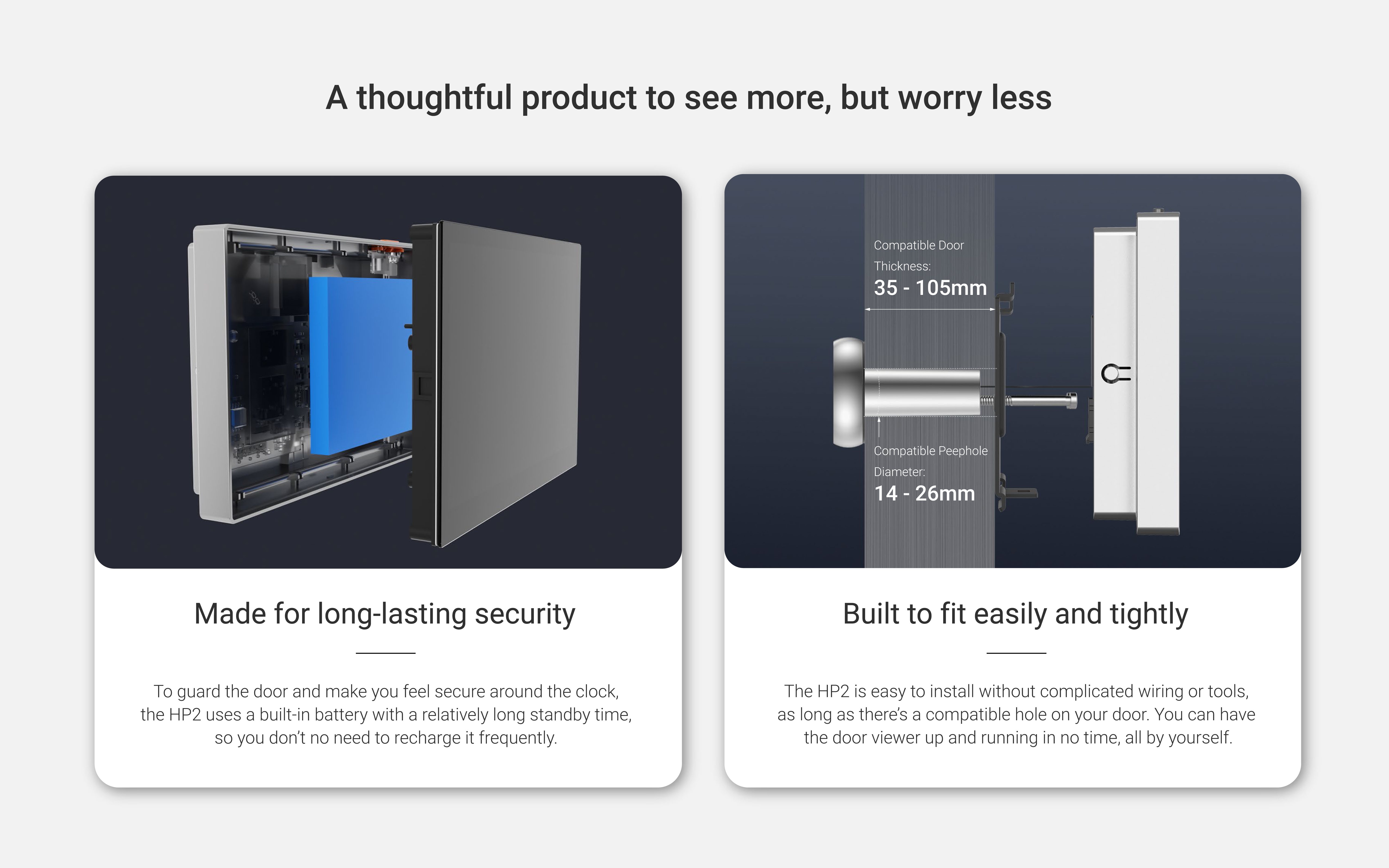

Peephole: 32 mm Diameter (1.26 inch Diameter)

Weight: 190g (6.7oz)

In the box

- Camera

- Panel

- Mounting Base

- Power Cable

- Screws × 8

- Regulatory Information ×2

- Quick Start Guide

Certifications
