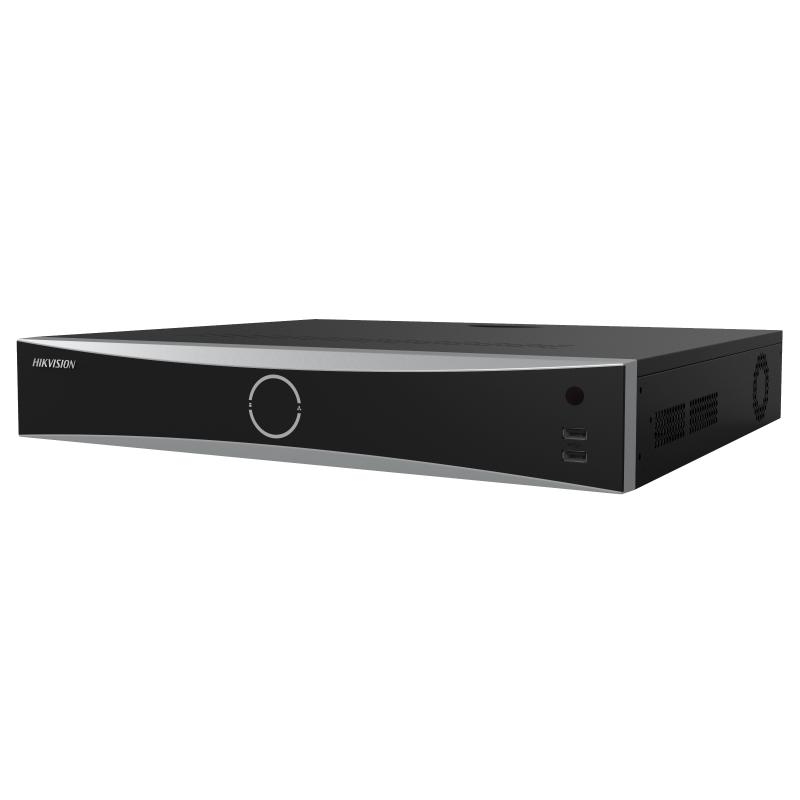

NVR 32-Channel 4K DS-7732NXI-K4 (AcuSense)

Why choose DS-7732NXI-K4?

• IP Camera Inputs: Supports up to 32 channels.
• Advanced Compression Technologies: Supports H.265+/H.265/H.264+/H.264.
• Decoding Capacity: Up to 2 channels at 12 MP or 3 channels at 8 MP or 6 channels at 4 MP or 12 channels at 1080p.
• High Incoming Bandwidth: Up to 256 Mbps.
• AcuSense Technology: Reduces manual effort and security costs.
• Intelligent Analytics with AI: Facial recognition, perimeter protection, motion detection 2.0, ANPR, VCA.

Detailed Specifications

• Intelligent Analytics:
• By Device: Facial recognition, perimeter protection, motion detection 2.0.
• By Camera: Facial recognition, perimeter protection, throwing objects from buildings, motion detection 2.0, ANPR, VCA.
• Facial Recognition: Up to 16 face picture libraries with a total of up to 20,000 face pictures.
• Facial Detection & Analytics Performance: 1 channel at 8 MP.
• Motion Detection 2.0:
• By Device: Video analysis on all channels (up to 4 MP) for human and vehicle recognition.
• By Camera: Available on all channels.
• Perimeter Protection:
• By Device: 2 channels at 4 MP for human and vehicle recognition to reduce false alarms.
• By Camera: Available on all channels.
• Video & Audio:
• IP Video Input: 32 channels.
• Incoming Bandwidth: 256 Mbps.
• Outgoing Bandwidth: 160 Mbps.
• HDMI Output: 1 channel, 4K (3840 × 2160)/30Hz.
• VGA Output: 1 channel, 1920 × 1080/60Hz.
• Video Output Mode: Independent HDMI/VGA output.
• Audio Output: 1 channel RCA.
• Two-Way Audio: 1 channel RCA.
• Encoding and Decoding:
• Encoding Formats: H.265+/H.265/H.264+/H.264.
• Recording Resolutions: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA.
• Decoding Capability:
• With AI: 1 channel at 12 MP (30 fps), 2 channels at 8 MP (30 fps), 4 channels at 4 MP (30 fps), 8 channels at 1080p (30 fps).
• Without AI: 2 channels at 12 MP (30 fps), 3 channels at 8 MP (30 fps), 6 channels at 4 MP (30 fps), 12 channels at 1080p (30 fps).
• Network:
• Remote Connection: Supports up to 128 connections.
• Supported Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS.
• Ports: 2 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces.
• SATA Interface: 4 SATA interfaces, up to 10 TB per HDD.
• Alarm In/Out: 16/4 (16/9 optional).
• USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0.
• Power:
• Power Supply: 100 to 240 VAC, 50 to 60Hz.
• Consumption: ≤ 20W (without HDD).
• Operating Temperature: -10°C to 55°C (14°F to 131°F).
• Humidity: 10% to 90%.
• Dimensions:
• Size: 445 × 400 × 75 mm (17.5" × 15.7" × 3.0").
• Weight: ≤ 5 kg (11 lb, without HDD).

Ideal for advanced surveillance and video analysis with AI technology to reduce security costs and enhance event processing efficiency.
