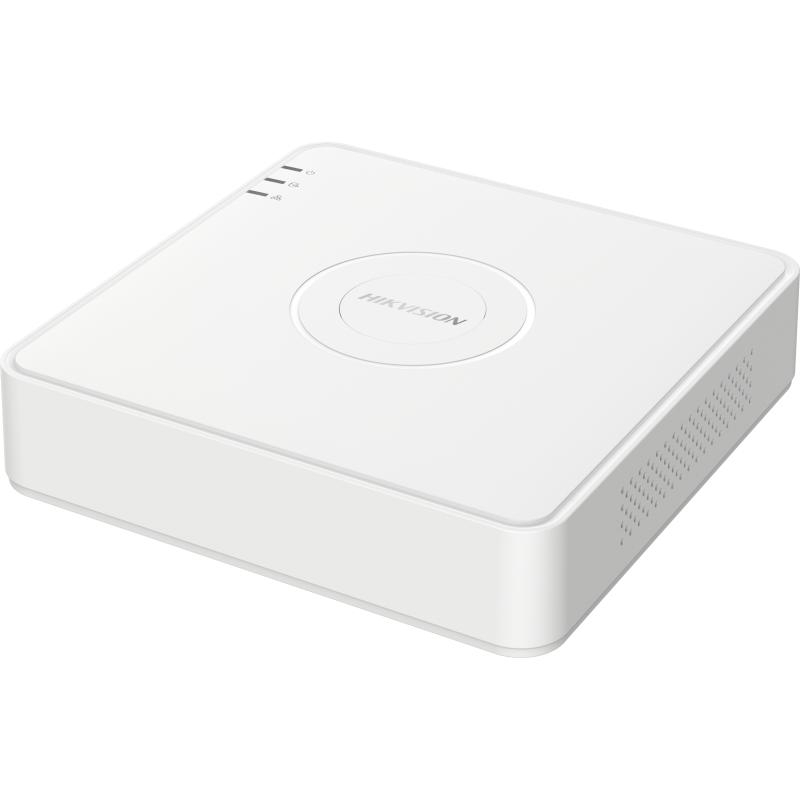

8-ch 1080p Lite Mini 1U H.265 DVR DS-7108HGHI-K1

Why Choose DS-7108HGHI-K1?

• Advanced Motion Detection: Deep learning-based Motion Detection 2.0 for human and vehicle classification, reducing false alarms from irrelevant objects.
• Versatile Video Input: Supports HDTVI, AHD, HDCVI, CVBS, and IP video inputs, with up to 10 IP camera channels (up to 5 MP).
• High Efficiency: H.265 Pro+/H.265 Pro compression minimizes storage requirements without compromising video quality.
• Long-Distance Transmission: Supports HDTVI signals up to 1200m for 720p resolution.
• Simultaneous Output: HDMI and VGA output with up to 1080p resolution.
• Integrated Audio Support: Audio over coaxial cable, two-way audio, and G.711u compression for clear sound.
• Compact and Durable Design: Mini 1U form factor, ideal for small spaces with reliable operation in various environments.

Specifications

• Motion Detection 2.0:
• Classifies human and vehicle targets.
• Quick search by object or event type.
• Video and Audio:
• IP Video Input: 2-ch (up to 10-ch), resolution up to 5 MP.
• Analog Video Input: 8-ch, BNC interface supporting coaxitron connection.
• HDTVI/AHD/HDCVI: 1080p25/30, 720p25/30.
• CVBS: Supported.
• HDMI/VGA Output:
• 1-ch HDMI/VGA simultaneous output.
• Resolution: Up to 1920 × 1080/60Hz.
• Audio Input/Output:
• 1-ch RCA input and output.
• 8-ch audio via coaxial cable.
• Two-Way Audio: Reuse the first audio input.
• Recording:
• Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.
• Encoding Resolution:
• 1080p Lite @15 fps, 720p Lite @15 fps, SD @25 fps (PAL)/30 fps (NTSC).
• Bitrate: 32 Kbps to 4 Mbps.
• Playback: 8-ch synchronous playback.
• Network:
• Bandwidth: 72 Mbps.
• Remote Connection: Up to 64.
• Protocols: TCP/IP, DHCP, Hik-Connect, HTTPS, and more.
• Network Interface: RJ45 10/100 Mbps Ethernet interface.
• Storage and Interfaces:
• SATA: 1 interface supporting up to 4 TB per disk.
• USB: 2 × USB 2.0 ports.
• General Specifications:
• Power Supply: 12 VDC, 1.5 A.
• Power Consumption: ≤ 17 W (without HDD).
• Operating Temperature: -10°C to 55°C (14°F to 131°F).
• Operating Humidity: 10% to 90%.
• Dimensions: 200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inches).
• Weight: ≤ 1 kg (without HDD).
