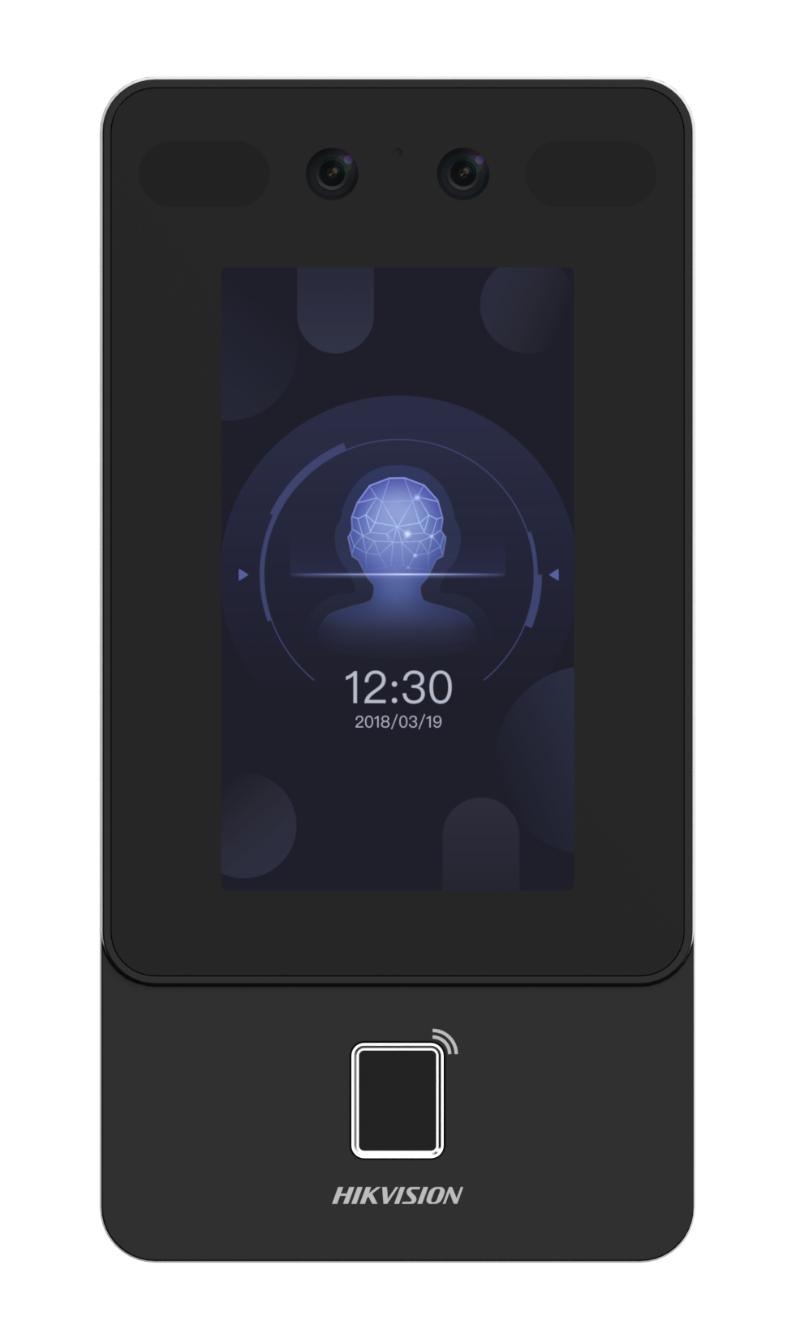

Face Recognition Terminal DS-K1T342MFWX-E1

Why Choose the DS-K1T342MFWX-E1?

• Large Capacity: Supports up to 1,500 face profiles, 3,000 fingerprints, and 3,000 cards.
• High-Accuracy Face Recognition: Recognition duration of less than 0.2 seconds with an accuracy rate of ≥ 99%.
• Mask-Compatible Face Recognition: Ensures secure access even when wearing a mask.
• 4.3-Inch LCD Touch Screen: Features a capacitive touch screen and intuitive user interface.
• Wide-Angle Camera: 2 MP lens with a recognition distance of 0.3 m to 1.5 m.
• Flexible Connectivity: Supports TCP/IP and Wi-Fi for seamless integration.
• Power Over Ethernet (PoE): Simplifies installation and powers door locks simultaneously.
• Rugged Design: IP65-rated for durability in various environments.
• Easy Configuration: Manage settings via the web client or compatible software.

Specifications

• System:
• Operating System: Linux.
• Display:
• Type: LCD, capacitive touch screen.
• Size: 4.3 inches.
• Resolution: 272 × 480.
• Video:
• Pixel: 2 MP.
• Lens: Dual wide-angle lenses.
• Video Standard: PAL (default) and NTSC.
• Network:
• Connectivity: 10 M/100 M self-adaptive Ethernet and Wi-Fi support.
• PoE: IEEE802.3at standard PoE for power and data transmission.
• Interface:
• Inputs/Outputs:
• RS-485: 1.
• Wiegand: 1.
• Lock Output: 1.
• Exit Button: 1.
• Door Contact Input: 1.
• Tamper Input: 1.
• USB: 1.
• Capacity:
• Face Profiles: 1,500.
• Fingerprints: 3,000.
• Cards: 3,000 (M1 card, 13.56 MHz).
• Event Storage: 150,000 events.
• Authentication:
• Face Recognition Duration: < 0.2 s.
• Face Recognition Distance: 0.3 m to 1.5 m.
• Fingerprint Recognition Duration: < 1 s.
• General:
• Power Supply:
• Input: 12 VDC/1 A (adapter included) or PoE (37-57 VDC).
• Output: 12 VDC/1 A for door lock (when powered via PoE).
• Working Temperature: -30°C to 60°C (-22°F to 140°F).
• Humidity: 0% to 90% (non-condensing).
• Dimensions: 91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96").
• Weight:
• Gross: 0.93 kg (2.05 lbs).
• Net: 0.36 kg (0.79 lbs).
• Installation: Wall-mounted.
• Protection Level: IP65.
• Additional Features:
• Face Anti-Spoofing: Prevents unauthorized access.
• Audio Prompt: Provides real-time notifications.
• Time Synchronization: Ensures accurate operation.

Ideal for secure access control in offices, factories, and other sensitive facilities.
