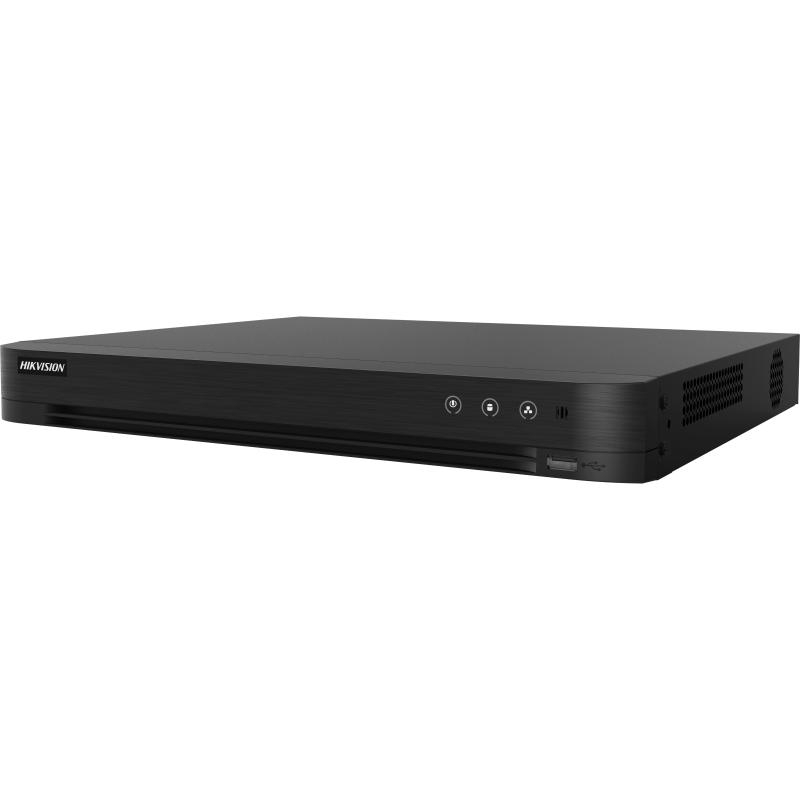

Key Features & Specifications

• Video Inputs:
• Analog: 16 channels, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection.
• IP: 8 channels (expandable to 16, up to 32 in enhanced mode), supports up to 8 MP resolution.
• HDTVI/AHD/CVI/CVBS Inputs: Supports resolutions including 8 MP @ 8 fps, 5 MP @ 12 fps, and 1080p at varying frame rates.
• CVBS Output: 1-channel BNC with PAL/NTSC support.
• Video Compression & Encoding:
• Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 for efficient storage.
• Resolution Options: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF.
• Frame Rate: Main stream encoding up to 8 MP at 8 fps, 5 MP at 12 fps, and up to 30 fps for lower resolutions. Sub-stream for lower resolutions.
• Bitrate: 32 Kbps to 10 Mbps, with dual-stream support.
• Audio:
• Audio Input: 1 channel, RCA (up to 16 channels via coaxial cable).
• Audio Output: 1 channel, RCA (linear, 1 KΩ).
• Two-Way Audio: 1 channel for communication via the audio input.
• Remote Access & Network:
• Bandwidth: Total bandwidth of 128 Mbps.
• Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF.
• Wi-Fi: Can be connected to a Wi-Fi network via USB dongle.
• Network Interface: 1 x RJ45 10/100/1000 Mbps Ethernet port.
• Storage & Connectivity:
• SATA: 2 SATA interfaces, each supporting up to 10 TB capacity.
• USB: 1 x USB 2.0 front panel, 1 x USB 3.0 rear panel for convenient data transfer.
• Basic Specifications:
• Power Supply: 12 VDC, 5 A.
• Consumption: ≤ 19 W (without HDD).
• Operating Temperature: -10°C to +55°C (+14°F to +131°F).
• Humidity: 10% to 90%.
• Dimensions: 380 x 320 x 48 mm (15.0 x 12.6 x 1.9 inches).
• Weight: ≤ 2.1 kg (4.6 lb).
