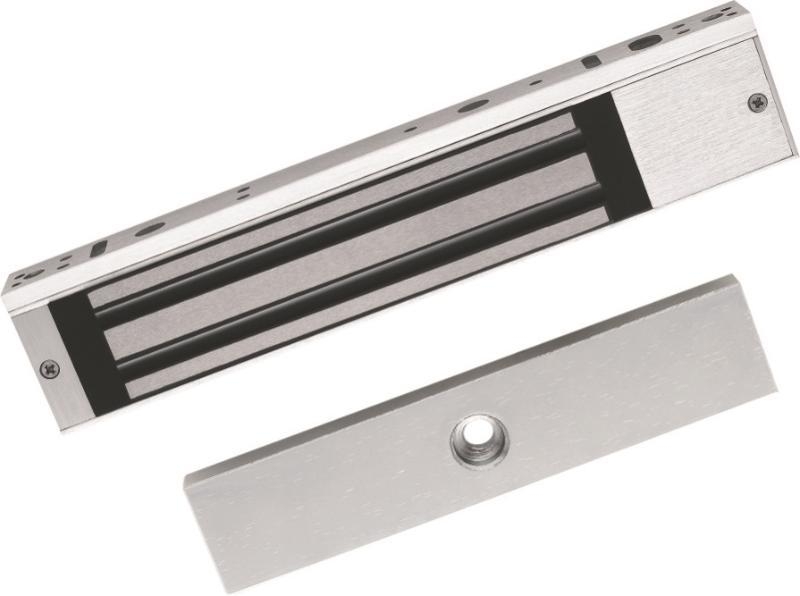

DS-K4H258 Magnetic Lock

The DS-K4H258 is a robust and reliable magnetic lock from Hikvision, supporting a static linear thrust of up to 280 kg (617 lbs). It is designed to secure doors in various environments, featuring abrasion-resistant materials and a durable build for long-term performance. This lock is compatible with a wide range of door types, including wooden, glass, metal, and fireproof doors.

Key Features:

• High Thrust Capacity: Supports up to 280 kg (617 lbs) of magnetic holding force, ensuring high-level security.
• Flexible Power Supply: Operates on either 12VDC or 24VDC (default voltage is 12VDC) to meet different power requirements.
• Wide Door Compatibility: Suitable for wooden, glass, metal, and fireproof doors.
• LED Indicator: Clearly displays the lock’s status (green indicates working status).
• Abrasion-Resistant Materials: Made from durable, eco-friendly materials for sustained performance.

Technical Details:

• Power Supply: 12VDC, 340mA × 2.
• Operating Temperature: -10°C to 55°C (14°F to 131°F).
• Operating Humidity: 0% to 95% (relative humidity).

Dimensions:

• Lock Body: 238 mm × 45 mm × 25 mm (9.4" × 1.8" × 1.0").
• Armature Plate: 182 mm × 38 mm × 12.5 mm (7.2" × 1.5" × 0.5").
• Weight: 2.1 kg (4.6 lbs).

Materials:

• Shell: Hard anodizing electroplated.
• Lock Body: Eco-friendly nickel electroplated.
• Armature Plate: Eco-friendly zinc electroplated.
• Surface Temperature: ≤ Ambient temperature +20°C (68°F).
• Unlock Method: Current interruption.

The DS-K4H258 magnetic lock is an excellent choice for securing doors with high efficiency and quality, combining strong performance with durable materials.
